Cone Calorimeter

Fire Flammability Test

The Cone Calorimeter is used for the determination of the fire behavior of the various samples in the solid state.

Read more
Cone Calorimeter

UV Chamber

Simple touch screen operation and control

Pre-programmed tests for error-free operation
Trendplot, alarm messages and maintenance schedule displayed

Read more
UV Chamber

Cyclic Corrosion Test Chamber

Cyclic Corrosion Test Chamber

Cyclic Corrosion Test is an accelerated corrosion test that produces a corrosive attack on the samples

Cyclic Corrosion Test Chamber

Spectro Group of Companies

Our Products

Our focus on developing high end testing equipment's not presently developed in India. This we are doing to be a part of MAKE IN INDIAprogramme of Government of India.

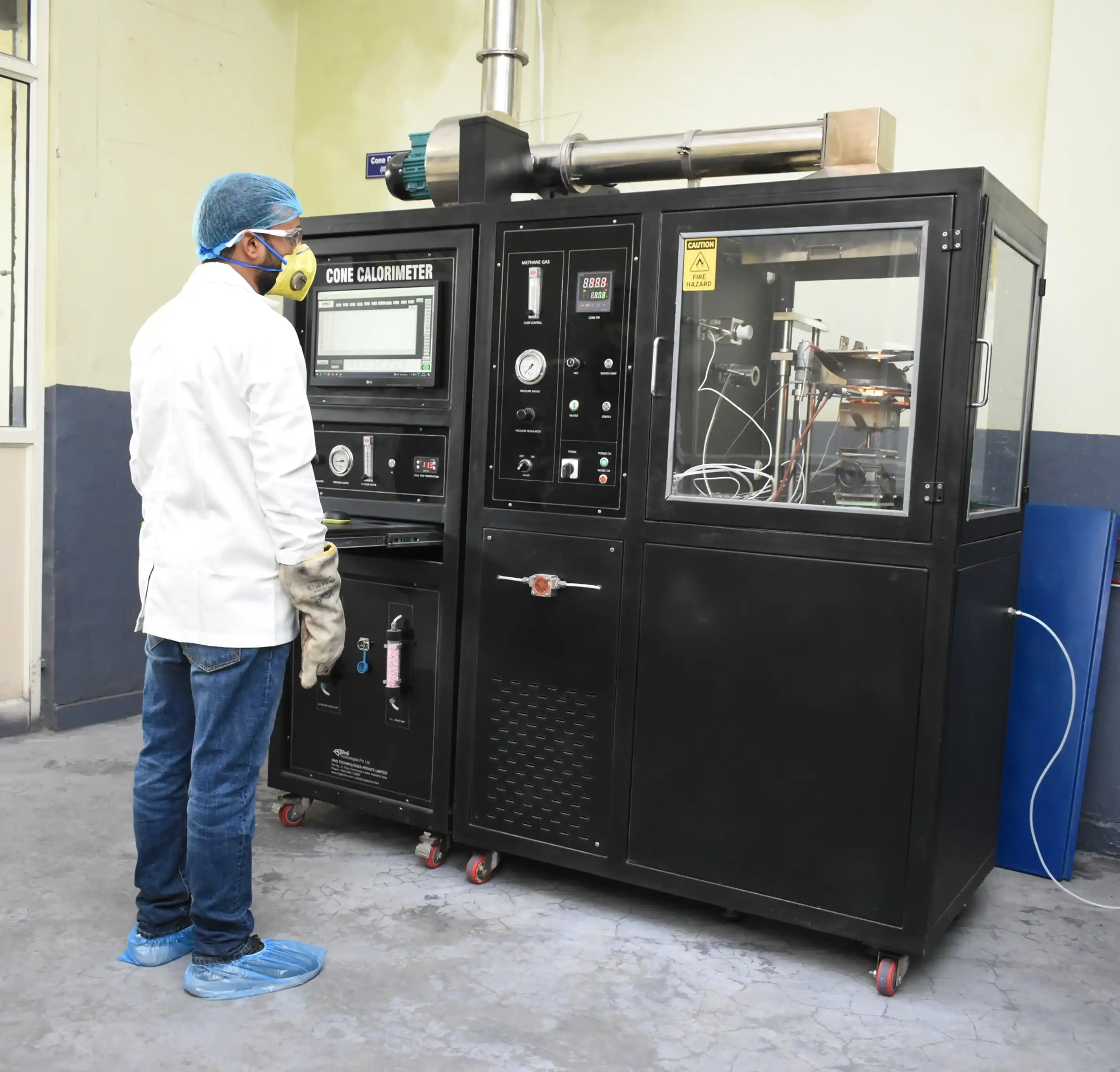

Cone Calorimeter

Cone Calorimeter

The is used for the determination of the fire behavior of the various samples in the solid state. This Device is used to collect information of the various parameters associated with the burning characteristics such as ignition time, mass loss, combustion products, heat release rate etc. of various samples. For the determination of Heat Release Rate, the Samples are exposed to the irradiative heat flux at the surface.
Conical Heater
Element 5000W electrical heating element
Heat Flux 100kW/m2Irradiative Heat Flux
Radiative ShieldPlaced between Specimen & Heater

Sample Holder
Holder106mm X 106mm at top and 25mm height
Sample Size100mm X 100mm
Cone Calorimeter Download Brochure
Cyclic Corrosion Test Chamber

Cyclic Corrosion Test Chamber

Corrosion Test is an accelerated corrosion test that produces a corrosive attack on the samples so as to predict their corrosive behavior under various environmental conditions as well as their suitability in use as a protective finish.

An accelerated corrosion test chamber performs the test by creating different environmental conditions such as Salt Fog, Salt Spray, Humidity & dryness in order to simulate the effects that a material will see under real life.

Cyclic Corrosion Test is popular because it is cheap, quick, well standardized and reasonably repeatable.

Whether you are new to corrosion testing or have been conducting test for years, you will find DnG Technologies equipments easy to use and operate. They are designed to provide the accuracy and flexibility necessary to meet today's industrial testing standards.
UV Chamber

UV Chamber

  • Pt1000 RTD used with BPT for more accurate temperature measurement
  • Best-in-class, consistent distribution of irradiance and temperature
  • High maximum irradiance levels of >1.55 W/m2 (UVA) and >1.23 W/m2 (UVB)
  • State-of-the-art optical and temperature sensor technology for improved accuracy
  • Air heater protection from splash water to avoid burnout
  • Frame-integrated float switch and viewing window to protect against accidental damage
Xenon Test Chamber

Xenon Test Chamber

  • Pt1000 RTD sunlight simulation
  • Flat plate type test shelf with large size specimens
  • Air-cooled for ultimate reliability and ease of maintenance
  • Reproduces the damage caused by full-spectrum sunlight and rain.
  • Xenon arc lamps give the best reproduction of full-spectrum sunlight.
  • Automatically adjusting power to the lamps.
  • Large specimen capacity
Tensile Testing Machine

Tensile Testing Machine

Tensile Testing Machine finds its application in determination of the tensile strength and elongation of variety of raw materials such as rubber, leather, fabric, plastics, Belts, wires etc.

The machine works on constant rate of traverse principle in which one end of the test specimen is held in a stationary grip while the other end is made to move at a known fixed speed. The load exerted on the stationary grip is sensed by a load cell and indicated by a digital load indicator. The load directly indicated in kilograms or Newton. The elongation of the test specimen is measured on a digital indicator.
ASH FUSION TESTER

ASH FUSION TESTER

  • Furnace Temperature Range 0°C ~ 1450°C
  • Temperature Controlling Accuracy < 5°C
  • Resolution 1°C
  • Sample Quantity 3 samples each time
  • Temperature Rising Speed Comply with national standard.
  • Laboratory Atmosphere Oxidability or weak reducibility
  • Power Supply 100 ~260V, 50/60HZ
  • Maximum Power ≤ 5KW
  • Cabinet Dimension 400mm×550mm×600 mm
  • Weight 52kgs (approx)
Rapid Chloride Permeability Test Apparatus

Rapid Chloride Permeability Test Apparatus

The DnG Technologies DnG-RCPT is a Rapid Chloride-Ion Permeability Test apparatus as per ASTM - 1202 - 05 with Eight channels.

It has been developed in house by our expert team who has conducted many tests on this apparatus. Concretes incorporating flyash or silca fume are less permeable to deleterious elements and thus are more durable than conventional concretes. The Rapid Chloride-ion Permeability Test (RCPT) is deigned to assess the resistance of concrete to the penetration of chloride ions, an indicator of its permeability Complete with Tools Kit.
Small Ignition Test

Small Ignition Test EN ISO 11925-2

The EN ISO 11925-2 test is one of the series of Euroclass test standards currently in use across Europe. This test is a reaction to fire test for building products and measures the ignitability of a sample when subjected to direct impingement of flame. It is relevant to material classes C, D and E. We offer an integrated package that allows you to perform this test with ease. The apparatus also complies with

DIN 4102 Part 1 class B2, small burner test and NF P 92-504
Smallignition Test Download Brochure
Fire Propagation of Products Test $ Equipment

Fire Propagation of Products Test $ Equipment to BS 476 Part A1 2009

Electrical: 230 volts – Nominal 10 Amps
Ambient Temperature: Operating 10°C to 35°C
Dimensions: Apparatus: 400mm (W) x 600mm x (H) x 300mm (D)
Control Module: 400mm (W) x 500mm x (H) x 400mm (D)
Gas Supplies: The gas supply specified in the Standard is Standard test gas G112, as specified in BS 4947.
Flow: Gas flow for burner adjustable from 0 to 5 nl/min
Pressure: 1kPa
Fire Propagation of Products Test Equipment Download Brochure
Horizontal Flammability Test

Horizontal Flammability Test Chamber

Technical Specifications:

Electrical:230 V AC, 50 Hz or 115 V AC 60 Hz
Gas: Methane gas supplied at 0.2 bar (2.5 PSI)
Ambient Temperature: Operating 10°C to 35°C
Dimensions: 580 mm (W) x 400 mm x (H) x 260 mm (D)
Packed weight: 50Kg
Horizontal Flammability Test Chamber Download Brochure
NBS Smoke Density Chamber

NBS Smoke Density Chamber

Technical Specifications:

The user can choose the configuration required such that the equipment complies with the mandatory requirements of BS 6401/ASTM E662 or ISO5659-2, or hot swappable between both apparatus specifications
Standard stainless steel chamber with additional corrosion resistant finish
Heated chamber walls
Full size chamber door, including an observation window and covering door
Instrument panel to left of chamber for ease of operation
Fixed irradiance vertical oriented heater (25kW/m²)
Vertical photometric optical system using state of the art PMT module (mandatory)
Push button/software controlled pneumatic lower vent assembly with high capacity extraction fan to efficiently extract smoke following a test
Push button/software controlled pneumatic upper vent
Multi-tip, multi-angle stainless steel pilot burner
Precise furnace control allowing software controlled furnace calibration
Bespoke radiometer for furnace calibration as per BS6401 and ASTM E662
Built in ports to take gas sampling tubes
NBS Smoke Density Chamber Download Brochure
Evolved Gas Toxicity Apparatus

Evolved Gas Toxicity Apparatus IMF X 70-100-2

Technical Specifications:

Electrical: 115 Volts AC 60Hz / 230 Volts AC 50Hz.
Ambient Temperature: Operating 10°C to 35°C.
Dimensions: 450mm (W) x 750mm x (H) x 450mm (D)
Flow: Flow through column adjustable from 0 to 20 nl/min.
Gas Supplies: Oxygen and Nitrogen at 2.6 Bar (38 psi) with a flow rate of 25 nl/min (normally bottled supply with in-line regulator and filter). No other restrictions should be used as this will reduce the flow rates.
Oxygen Analyser: Range:0 to 100% Oxygen
Repeatability (typical): ± 0.1% Oxygen
Linearity (typical): ± 0.1% Oxygen
Evolved Gas Toxicity Apparatus Download Brochure
Oxygen Index Test Module

Oxygen Index Test Module

Technical Specifications:

Electrical: 115 Volts AC 60Hz / 230 Volts AC 50Hz.
Ambient Temperature: Operating 10°C to 35°C.
Dimensions: 450mm (W) x 750mm x (H) x 450mm (D)
Flow: Flow through column adjustable from 0 to 20 nl/min.
Gas Supplies: Oxygen and Nitrogen at 2.6 Bar (38 psi) with a flow rate of 25 nl/min (normally bottled supply with in-line regulator and filter). No other restrictions should be used as this will reduce the flow rates.
Oxygen Analyser: Range:0 to 100% Oxygen
Repeatability (typical): ± 0.1% Oxygen
Linearity (typical):Linearity (typical): ± 0.1% Oxygen
Oxygen Index Test Module Download Brochure
Temperature Index Module

Temperature Index Module

Technical Specifications:

Electrical: 230vAC 50Hz / 115V 60Hz
Operating Temperature: 10°C to 35°C
Test Temperature: Ambient to 400°C
Flow: Flow through column adjustable from 0 to 20 nl/min
Gas Supplies: Oxygen and Nitrogen at 2.6 Bar (38 psi) minimum
Minimum flow to Oxygen and Nitrogen pipe lines 25 nl/min
(normally bottled supply with in-line regulator and filter). No other restrictions should be used as this will reduce the flow rates
Propane at 0.1 – 0.5 Bar
Oxygen Analyser: Range: 0 to 100% Oxygen Repeatability (typical): ± 0.1% Oxygen Linearity (typical): ± 0.1% Oxygen
Temperature Index Test Module Download Brochure
UL 94 Flammability Chamber

UL 94 Flammability Chamber

UL 94 tests the flammability of plastic materials for parts in devices and appliances. The apparatus is supplied as a complete system incorporating all the features necessary for ease of use safety. It conforms to all five UL 94 horizontal and vertical burner tests and associated ASTM international standards.
Features
A bench mounted draft free combustion chamber having a large inside volume of 1.0m3 and fitted with an interior light and exhaust fan to enable simple evacuation of combustion products
Large door and window made from toughened safety glass giving a generous view of the specimen during a test.
Specimen Holders
Fully adjustable horizontal and vertical specimen supports.
A burner in compliance with ASTM D 5025, with simple angle adjustment (0°, 20°, 45°) and precision gas control system including gas flow meter, pressure regulator and pressure gauge.
Two access ports enabling easy entry to the chamber for movement of the burner and specimen.
A Burner Wing Tip.
Three digital test duration timers for accurate but simplified operation
UL 94 Flammability Chamber Download Brochure
AUTOMATIC PROXIMATE ANALYZER

Automatic Proximate Analyzer

Features
  Integrated with high precision electronic scale. Using thermo gravimetry. Quickly, automatically and continuously
  Tests 19 samples in every experiment; automatic system with control of software. Using the advanced heating element and heat preservation materials to ensure the furnace body in stable condition.
  Meanwhile, the temperature rise more quickly, temperature control will be more precise, and malfunction rate lower.
  With the advanced and appropriate dust suction and fume exhaust devices, the testing results will be more precise and the laboratory cleaner.
  Data collection, calculation, print, and restoration are automatically done by computer.
  Adopting precise reference source, low temperature drift and high precision operational amplifier, and 12-Bit A/D conversion chip in the controlling card, the instrument has the functions of cold end compensation, over-temperature protection both in hardware and software.
  Adopting the advanced USB technology, one computer can control several instruments. And the synthesized instrument can be composed combined with other instruments.
  Completely support Windows systems; high stability; can link electronic scale and share data in long distance through network.
AUTOMATIC PROXIMATE ANALYZER Download Brochure
Isoperibol bomb calorimeter

Isoperibol Bomb Calorimeter

DNG Series of Isoperibol Bomb Calorimeters features an integrated platform based Bomb Calorimeter that combines all the features required for Calorific Value measurements of Solid and Liquid samples along with an Integrated Closed Loop water Chilling and circulating system.

The special feature of the instrument is that it does not require any special chemicals or water additives for the operation of the instrument. It is robust and highly durable and has proved its application in a wide range of applications and environments.

The instrument is designed with the latest Combustion Bomb, Auto Oxygen Charging and Venting System and Auto Lift System. The operator’s job is limited to putting the Oxygen Bomb with sample on the Bomb Hook. The instrument is designed to take over the operation thereafter.

All processes in the experiment are fully automatic. There is no requirement to either fill Oxygen externally or Relief Air or Measure Water or Adjust the Water Temperature etc. thereby reducing the workload of the operator and the errors associated with it.

Choice of Dual Operating Modes give Additional choice to customer to configure the experiment as per their own requirement. The precision mode takes a slightly longer time compared to the Predictive Mode.

A highly accurate measuring and dosing system is used to measure and fill water in the Calorimeter Vessel. This latest design ensures high repeatability and accuracy.

The customer has a choice of either a Solid State Peltier based Chilling system or a more heavy duty Compressor based chiller as per their requirements. The system automatically determines the cooling requirement and adjusts the circulating system accordingly. The same water is reused in a closed loop water circulation system.
Isoperibol Bomb Calorimeter Download Brochure
Bomb Calorimeter BCM-SMART

Bomb Calorimeter BCM-SMART

Product Description
  1. Thermal Jackting
  2. Water Refrigeration System
  3. Repeat ability
A circulating water system driven by a built-in high capacity pump helps to maintain a continuous forced flow around the sides and bottom of the bucket chamber and through the cover as well. With the semi-conductor water refrigeration system, the instrument can automatically determine the refrigerating capacity and balance the circulation system according to the caloric value of previous time. Thus the water temperature can be kept constant, and the influence of environment can be greatly reduced.

The instrument has the capacity of repeat ability of determination up to ± 10 Cal/gm between duplicate determinations of calorific value of standard coal samples.

  1. Bomb & Vessel
  2. Gas Filling System
Thick walled (High Pressure) Acid resistant Bomb & Vessel with proper insulation and capable of withstanding high pressure and fit for safely burning samples liberating up to 10000 calories per charge with Oxygen Pressure up to 40 atm.

The instrument is equipped with a Suitable gas filling arrangements with proper regulator and gauges for line/ vessel pressure and all necessary attachments. The gas filling arrangement shall take care of the safety of the combustion vessel.
Bomb Calorimeter BCM-SMART Download Brochure
Bomb Calorimeter zr

Bomb Calorimeter ZR

The DNG-ZR is an Automatic Microprocessor controlled Isoperibol Bomb calorimeter used for rapid determination of Gross Calorific Value of solid or liquid fuels. It consists of a temperature-controlled water jacket with a built-in water circulating system with chiller. The design is compact with minimum space requirement. The model has automatic bucket filling system. Special auto stop and auto raining joints are equipped to change the water in the system. The model has been developed as per IS-1350

Part-II, ASTM-D5865 & other relevant DIN, ASTM, BIS and ISO standards. The model is equipped with USB communication ports for reporting to a printer supplied with the equipment. A Windows based software is used for user friendly operation. The equipment can store data for 1000 test results. The model is equipped with Self Calibration Software.
Bomb Calorimeter ZR Download Brochure

Who We Are?

About Us

DnG Technologies Pvt. Ltd. is one stop source for Automation services. We are promoted by a team of professionals with years of experience in the field of equipment designing and machinery automation.

We cluster knowledge and creativity to develop high end automation products that become paradigm of innovations. We, at DnG, turn this motive into reality by contributing the market and our customers with an entire automation solution that offers maximum efficiency, flexibility and adaptability. Starting from customized products to large-scale industrial products, we keep our focus on our customer needs.

Our ultimate focus is to become the very first choice for our customers, especially when it is related to implementation of cutting edge technology. Working in close association with our customers, we have developed and automated some of the very unique and optimum solutions tailored to their specific requirements.

Till date, we have served many renowned companies in India and several parts of the world and we feel proud to share that we have been admired and have received lot of compliments for our products.

We also undertake outsourcing for developing software and engineering services for customers.
