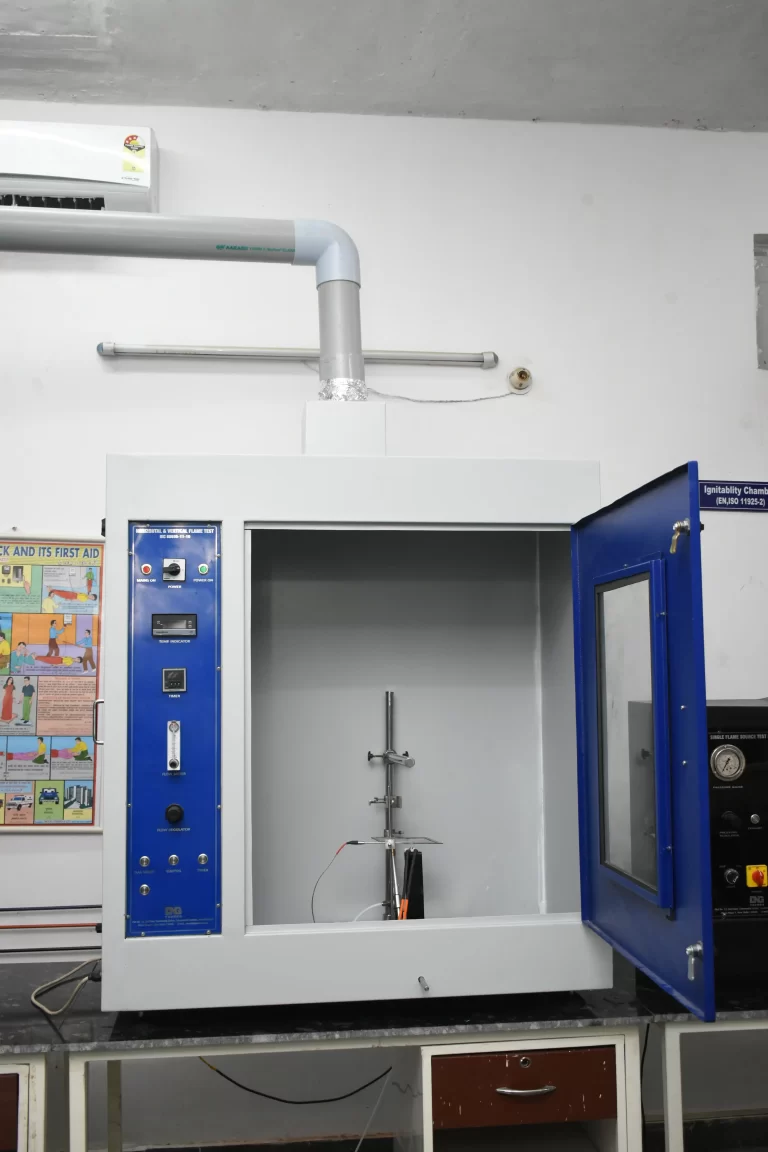

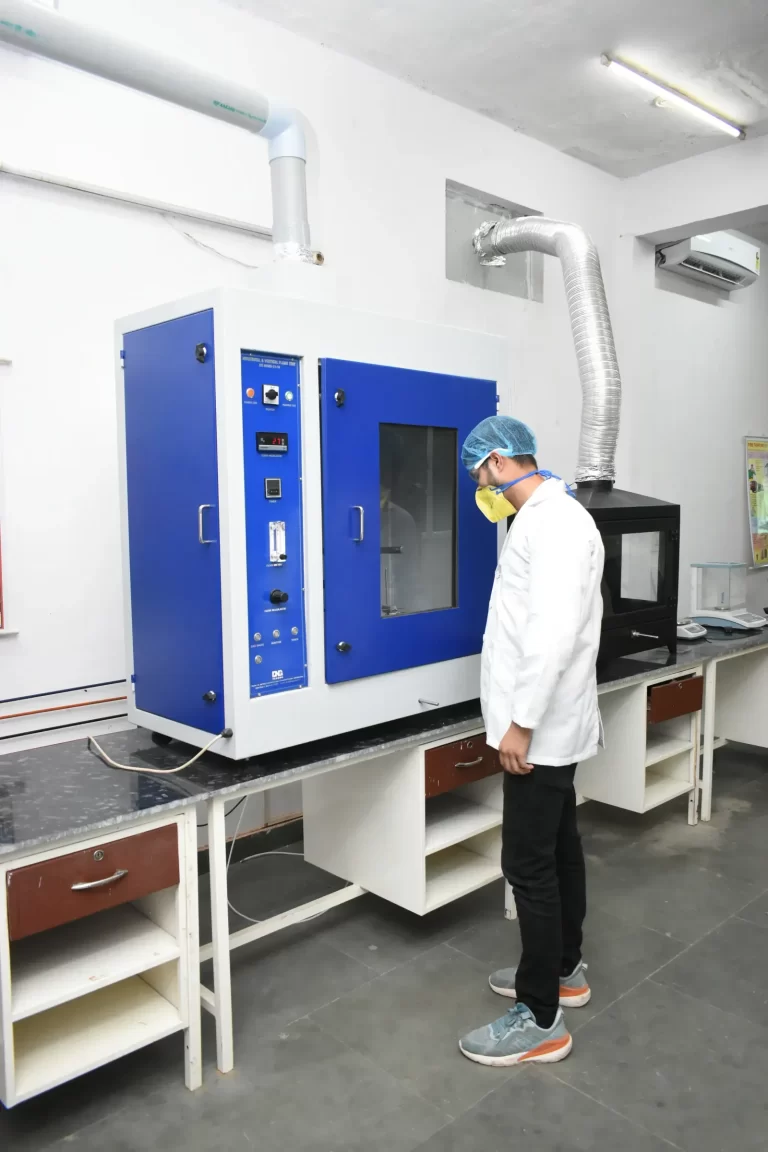

UL 94 Horizontal / Flammability Tester
Description
THIS PART OF UL 94 AND IEC 60695-11-10 specifies standard test methods for evaluating the flammability of plastic materials used in electrical devices, appliances, and components.
The DNG UL 94 Horizontal and Vertical Flame Chamber is a precision fire testing instrument designed to determine the burning characteristics of polymers under controlled laboratory conditions.
The DNG UL 94 Horizontal and Vertical Flame Chamber is manufactured in Faridabad, India for controlled horizontal and vertical flammability testing of plastic materials. Identify the specific UL 94 procedures/classifications and IEC 60695-11-10 method supported by the supplied configuration. Ideal for testing labs, R&D centers, and manufacturers of electrical, automotive, and construction materials, it delivers reliable plastic flammability testing for quality and safety certification.
Features :
- Combustion Chamber:
Bench-mounted, stainless-steel draft-free chamber with a 0.5 m³ internal volume, interior light, and exhaust fan for safe evacuation of combustion gases. - Viewing Window:
Large toughened safety-glass door offering a clear view of specimens during testing. - Specimen Holders:
Designed for horizontal (½” × 5”) and vertical (8 × 2) burning tests for thin materials. - Adjustable Supports:
Fully adjustable horizontal and vertical specimen supports for flexible test configurations. - Burner System:
UL 94-compliant burner with angle adjustment (45° / 90°), precision gas flow meter, pressure regulator, and pressure gauge for consistent flame application. - Digital Controls:
Equipped with three digital timers (range 0–999.9 sec, 0.1 sec resolution) for accurate test-duration measurement. - Test Accuracy:
± 2 % accuracy at full range, with 10 mm ± 1 mm burner-to-specimen distance and 20 mm ± 1 mm flame length for precise repeatability. - Standards Comply
IEC 60695-11-10 Fire Hazard Testing
UL 94 Horizontal & Vertical Flame Test
